Hydraulic Oil Filtration Machine

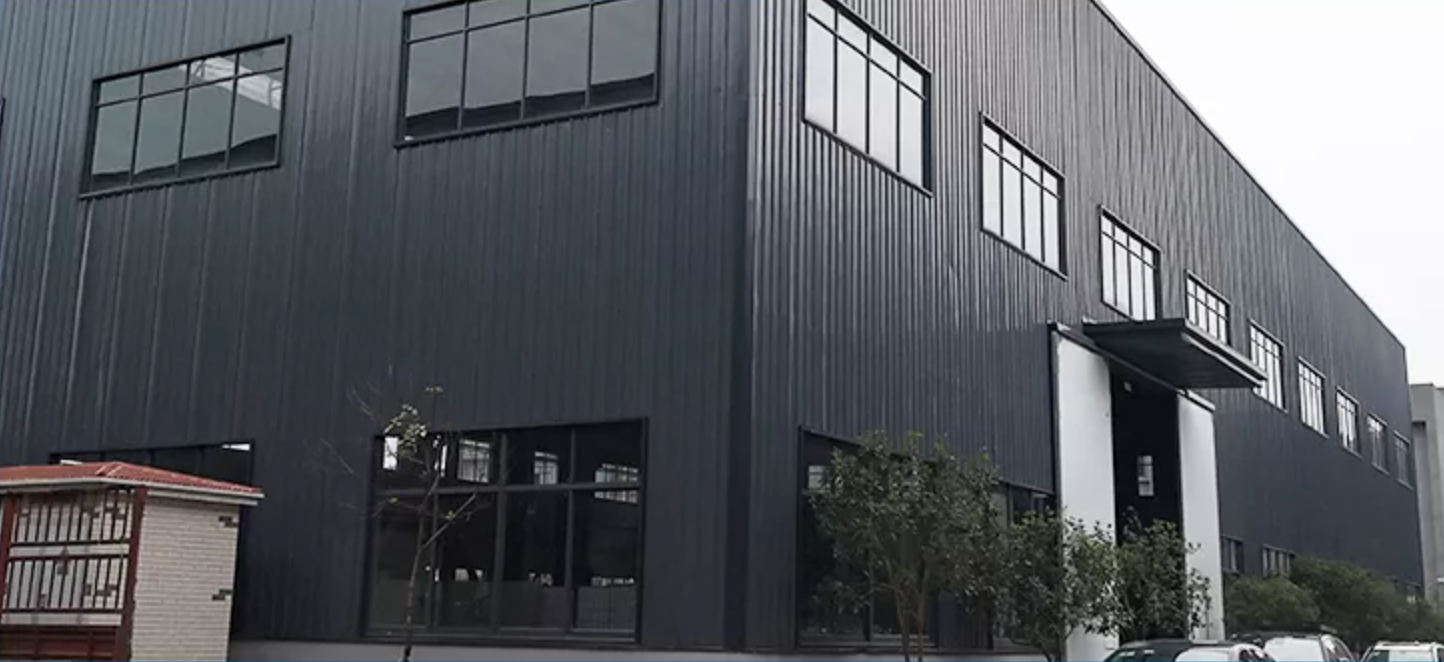

Our Company

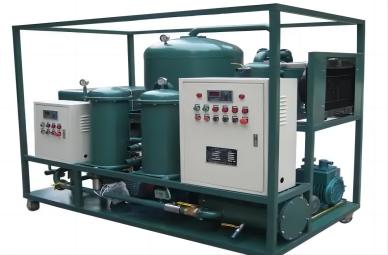

Overview of the Oil Purifier

Application:

It is applied to purify various high-precision lubricating oil such as hydraulic oil, mechanical oil, coolant oil, gear oil, heat treatment oil and so on.

Advantage:

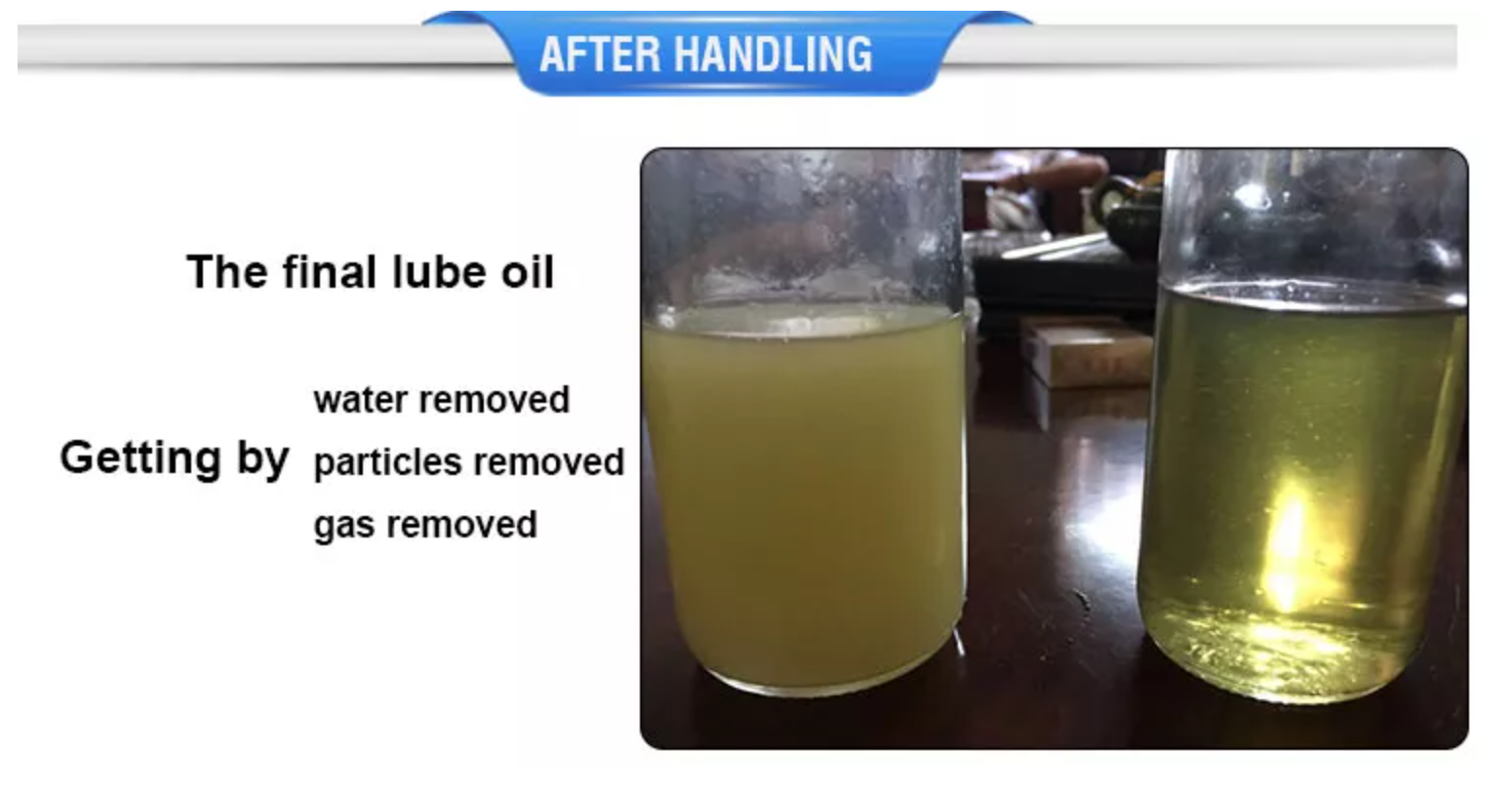

This machine can fast degas, de-water and remove the impurity and the volatile matter (for example ethyl alcohol, gasoline, ammonia and so on). Enhances the oil quality, restores the lubricating oil viscosity, augments the flash point and improves the operational performance. Guaranteed the hydraulic system and the dynamic system, the lubrication system normal operation, so the machine is suit for many lines, such as the mine, metallurgy, electric power, transportation, manufactures and so on.

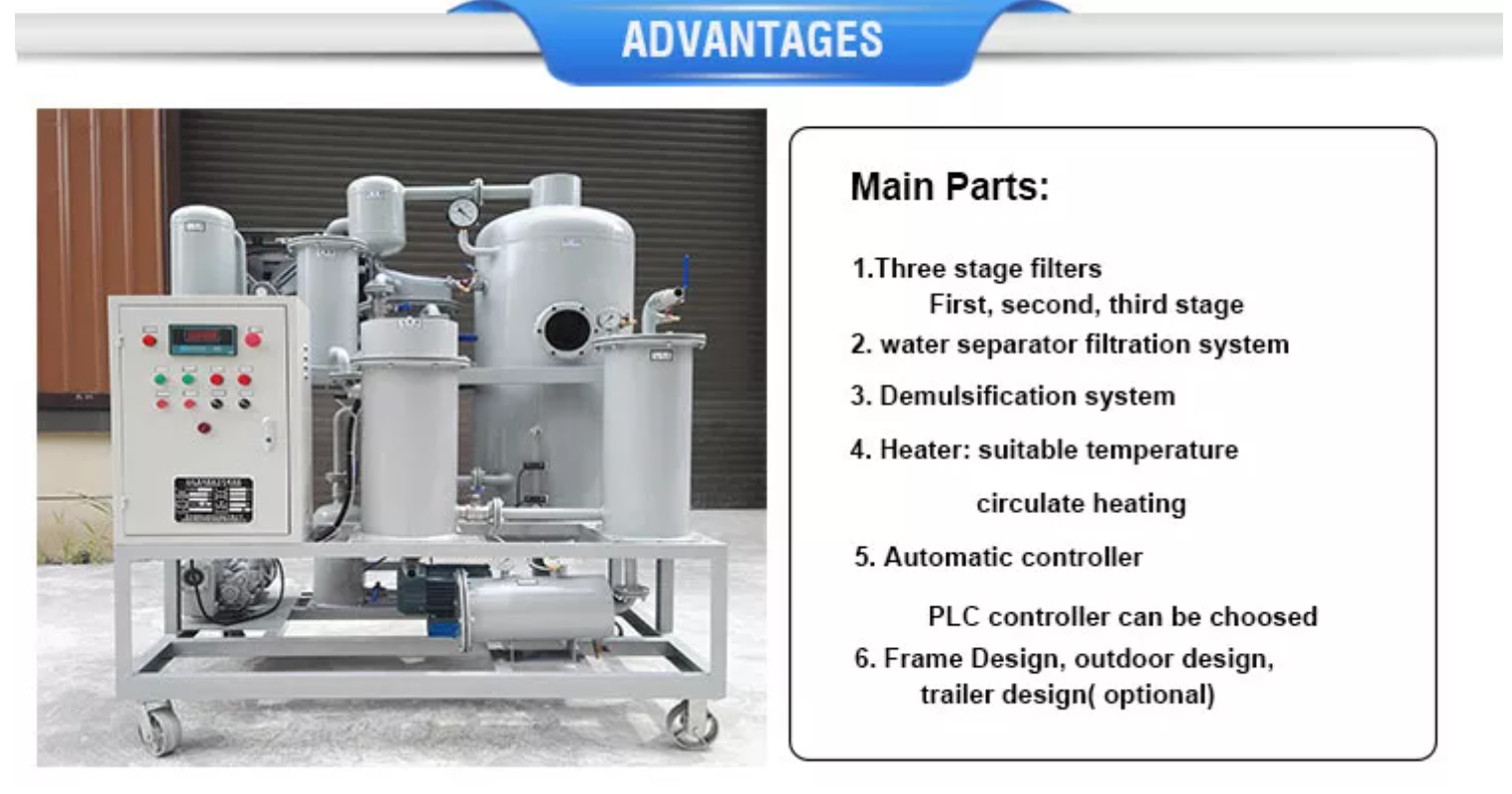

Features:

1.The water separator uses high-molecular coalescing material as filtering medium, which integrates emulsification, dehydration and impurity removal.

2.Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy installation and replacement.

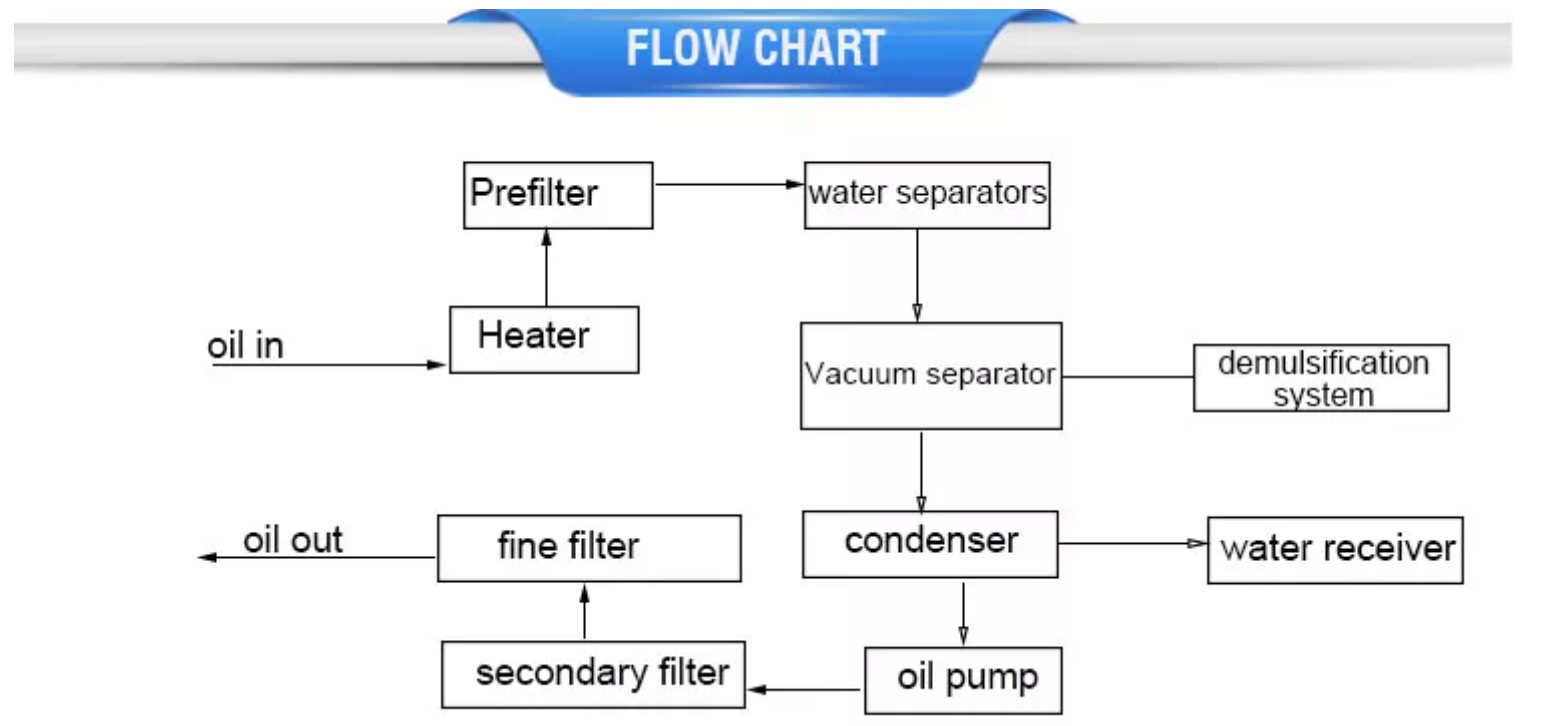

3.High-efficiency vacuum dehydration and degassing:Duplex-Stereo film evaporation technology.

4.Excellent heating system: carbon fiber electric heater with long service life, low heating surface load, linear temperature rise,preventing oil cracking, keeping oil uniform heating.

5.Automatic control to realize unattended, safe and stable working.

6.Safety interlock protection: oil pump, vacuum pump, heater interlock protection.

7.Humanized instructions: automatic design, and there are instructions such as oil temperature gauge, pressure gauge, vacuum gauge,filter pollution alarm, operating status and so on.

8.This machine has the advantages of low noise, easy operation, long maintenance interval, low energy consumption, low operatingcost, high oil filtration efficiency, long lifetime, etc.

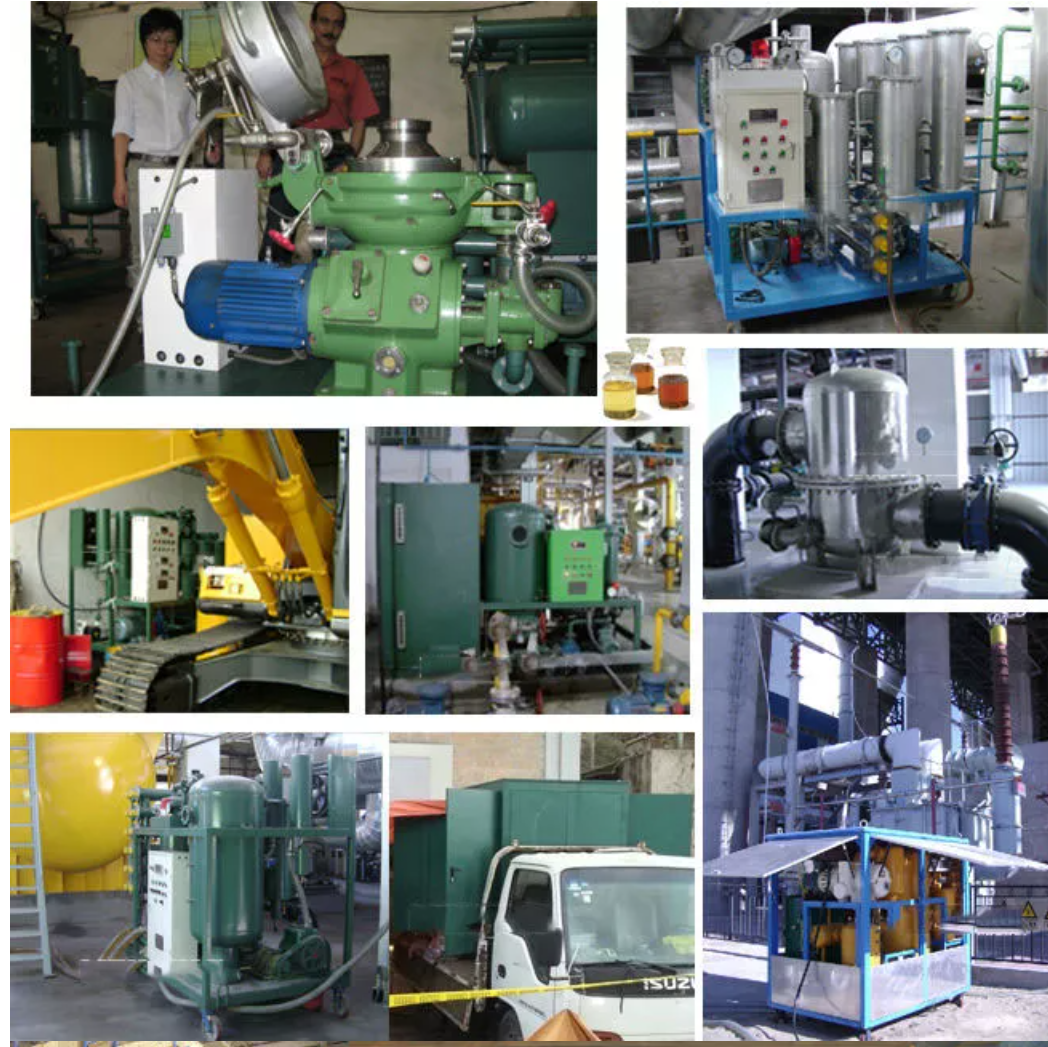

Site Oil Treatment

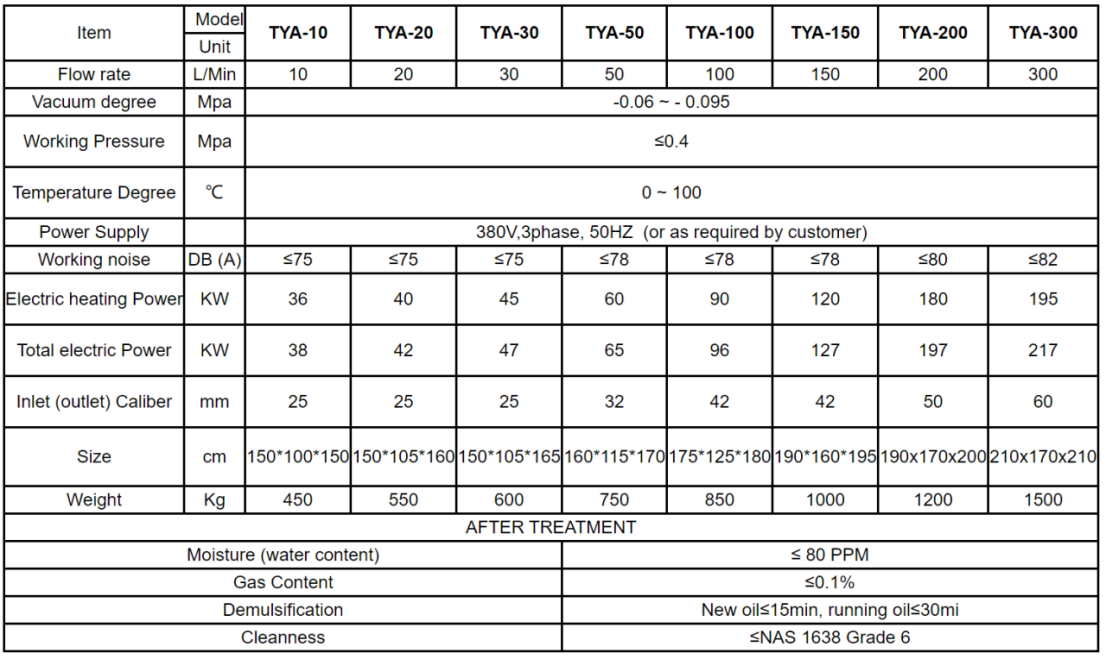

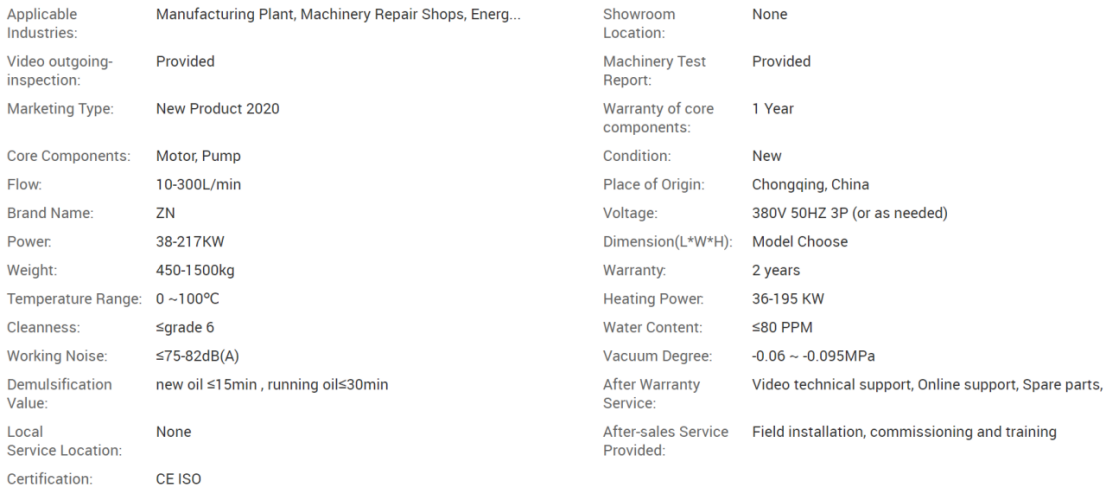

Models&Specification

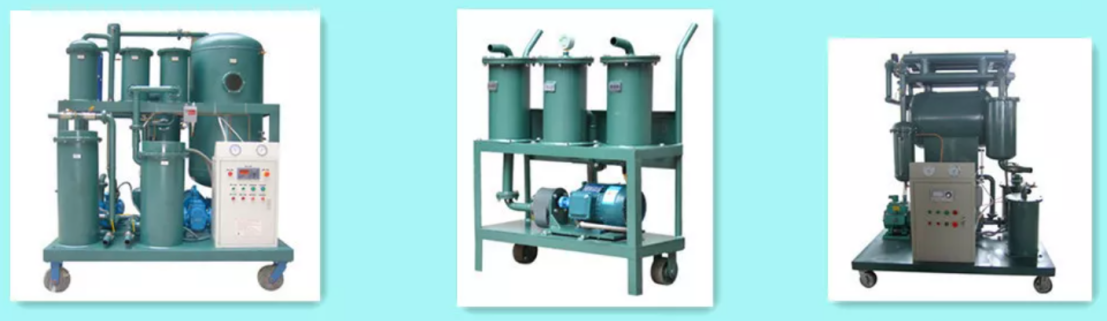

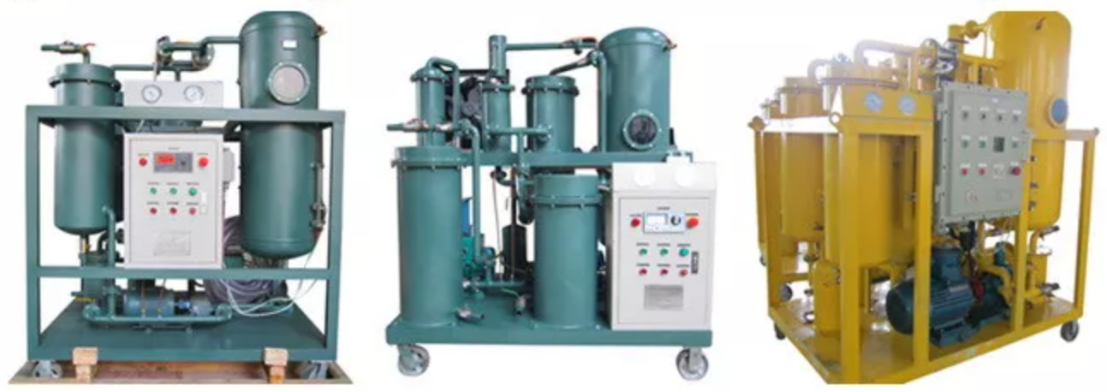

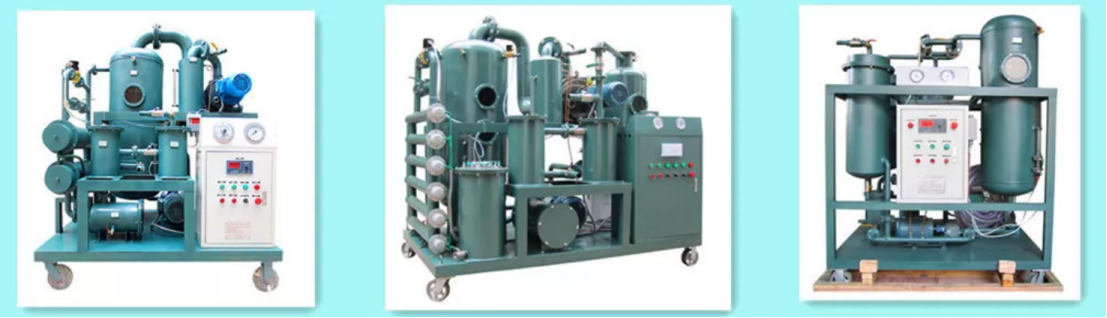

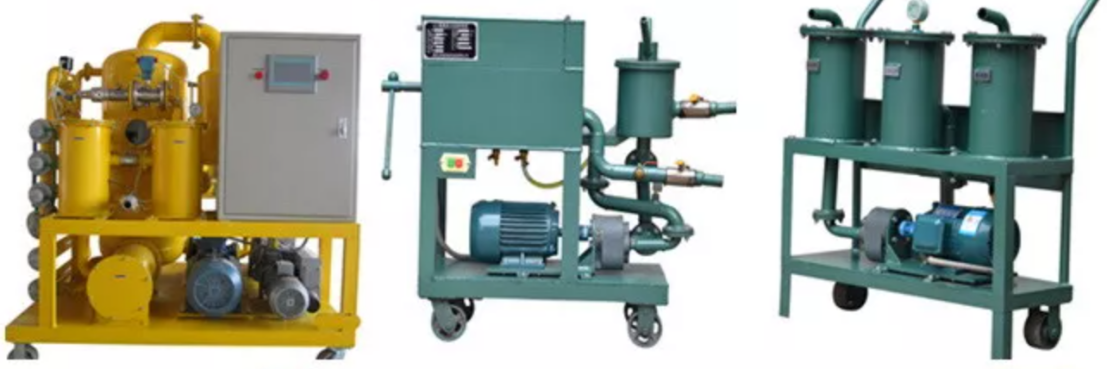

Our Main Filtration Machines

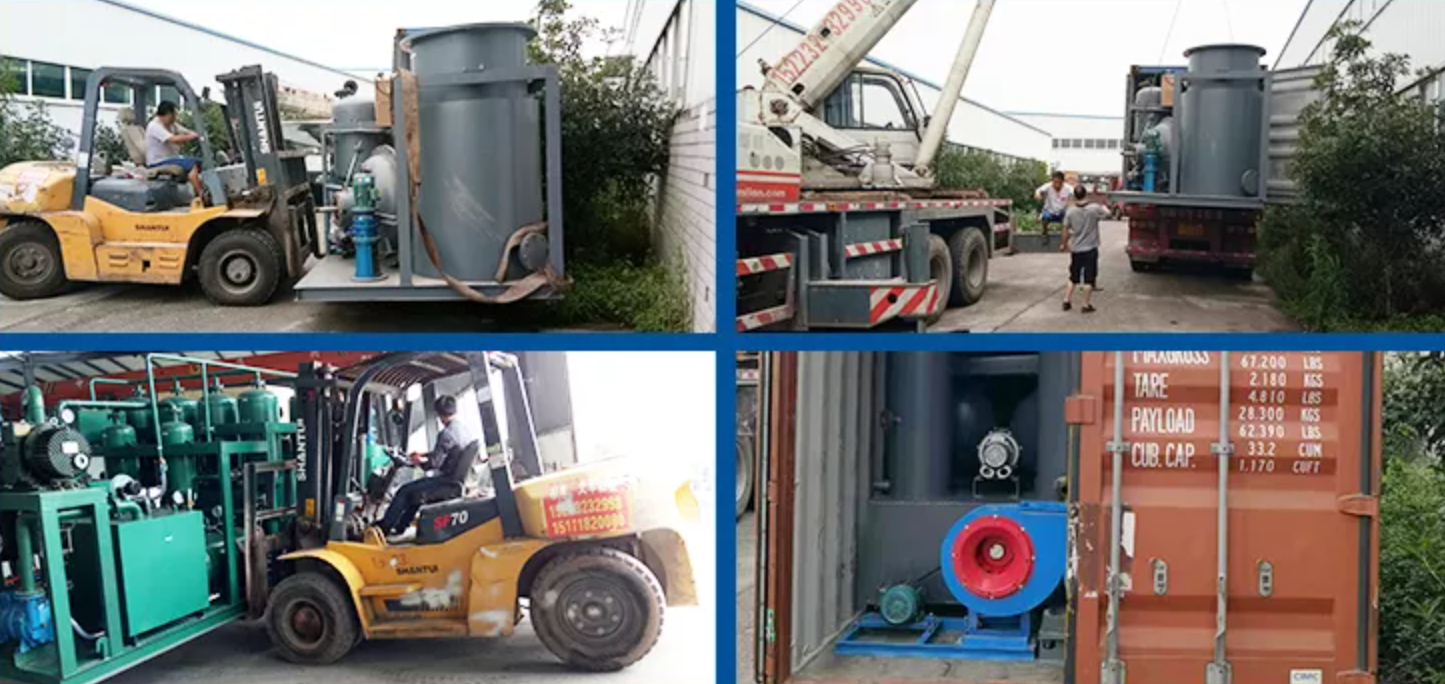

Packaging:

1. Package: wooded case

2. Port Of Loading: Chongqing, Shanghai or other main port of China.

3. Delivering Method: by sea, by air, by truck, by express, combined transportation.

4.  Delivery Time: It differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.

Other Services

1. We warrants the plant supplied under agreed specification,under normal use and service for a period of 2 years after start up of the system.

2. Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
