CQMQ Movable Portable Oil Purifier

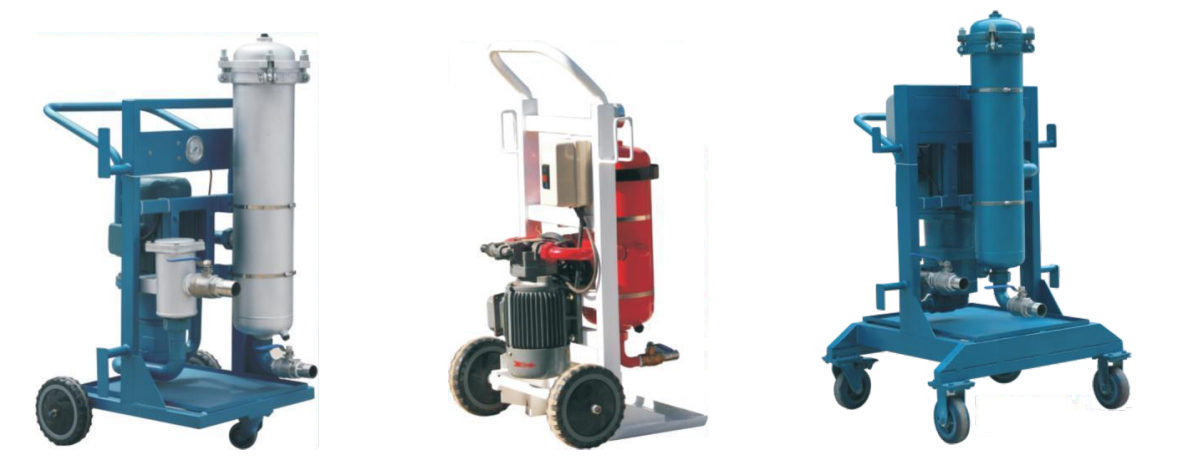

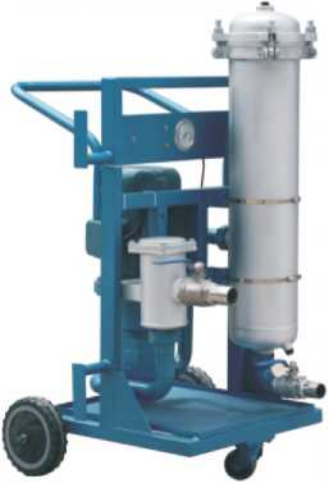

CQMQ-A Series Movable Portable Oil Purifier
Application
Filter new oil
Fill in and filter new oil
Filter the oil in use
Bypass filtration of hydraulic lubrication system
Filter the different used oil.
Features
This oil purifier includes a special gear pump driven by a motor. It has the characteristics of low noise, strong self-priming ability, and stable operation.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
Use thermal relay protection to prevent motor damage caused by motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main filter.
Different precision for the fine filter can be chosen according to the different needs of users to achieve the required results.
The oil filter housing adopts a quick-opening structure. No special tools are needed to quickly open the upper cover and replace the filter element.
The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the degree of pollution of the filter element during work.
Structure characteristics
End cap
Top design quick opening structure, easy to change filter element
Filter element
Selected high-precision filter material, large filter area, keep up with the international advanced structural design.
Connect
All adopt hydraulic pipe joint, reliable connection and sealing, zero leakage.
Loadable frame:durable
Wheel
High quality polyurethane wheel, famous brand bearing, stable operation, no noise.
Electric control
It adopts magnetic starter and thermal relay protection, which can effectively protect the motor and is durable.
Suction filter
High strength woven net is used to protect the oil pump from damage.
Pressure indication
Pressure gauge is set to indicate system pressure and prompt to replace filter element in time.
Oil pan
Helps keep workplace safe.
Gear pump

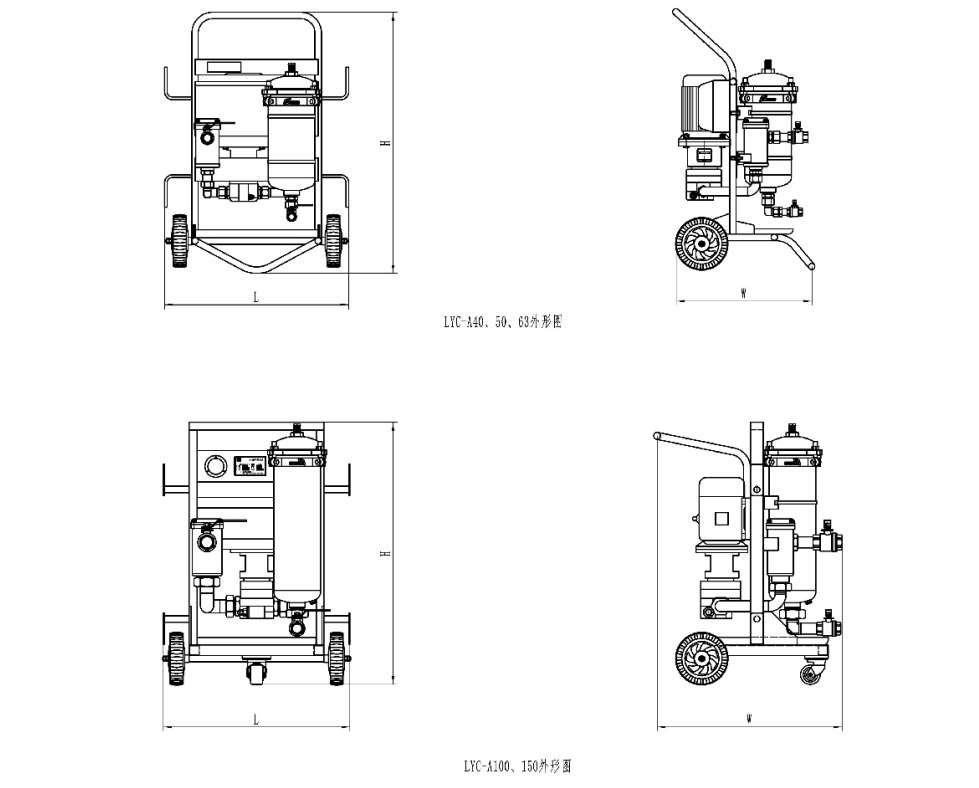

Dimensions

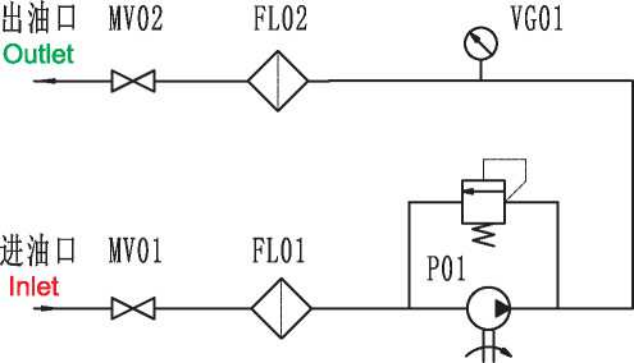

Hydraulic schematic drawing

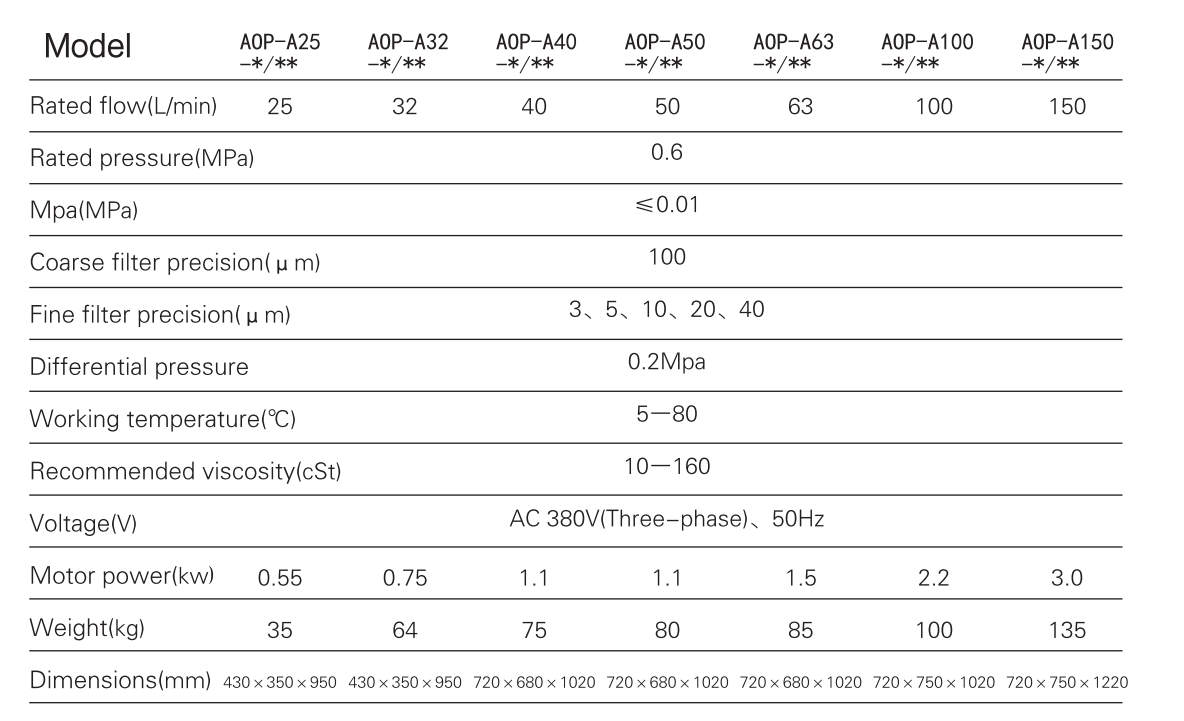

Technical parameter

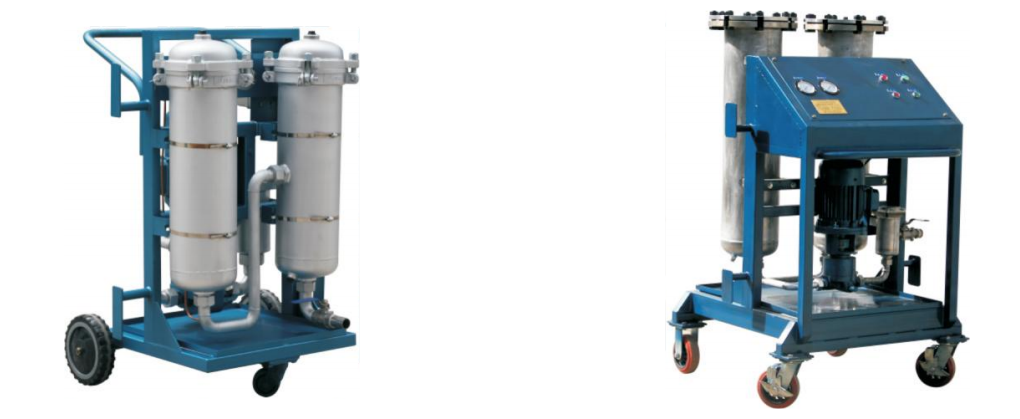

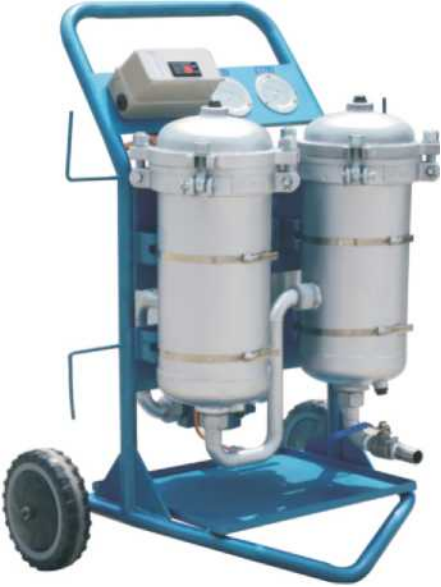

CQMQ-A Series Movable Portable Oil Purifier
Application
Filter new oil
Fill in new oil and filter
Clean up the oil in use
Bypass filtration of hydraulic lubrication system
Principles
The pollution degree of unpurified new oil often exceeds the requirements of actual hydraulic system oil regulations. Even the new oil that has just been extracted from the oil tank is not suitable for direct use. There are many reasons for the pollution of the new oil. Various pollutants, including particles, moisture, may pass into the new oil during processing, mixing and storage. Portable oil filter is an ideal method for pre-filtering, filling oil and purifying system oil. The free water in the oil can be separated out through the dehydration filter element installed in the outlet filter. The dehydration filter element is made of super absorbent resin that has a high binding force with water. Free water once Contact with this material is adsorbed.
Structure features
End cap
Top design ,Quick-opening structure, convenient for maintenance.
Filter element
High precision filter material, Large filtration area, advanced structure design.
Connection
Adopting hydraulic pipe joints, reliable connection and sealing, zero leakage.
Frame
Sturdy and durable
Carriage wheel
Premium Polyurethane wheel, operate smoothly, no noise.
Electrical control
Using magnetic starter, built-in thermal relay protection, effective protection of the motor, sturdy and durable.
Suction oil filter
Using high-strength mesh grid for protecting oil pump from damage.
Pressure indicator
Equipped with pressure gauge to indicate system pressure and prompt to replace the filter element in time.
Gear pump
Internal gear pump, quiet operation, reliable performance, long service life.
Oil receiving tray
Keeping the workplace safe and clean.

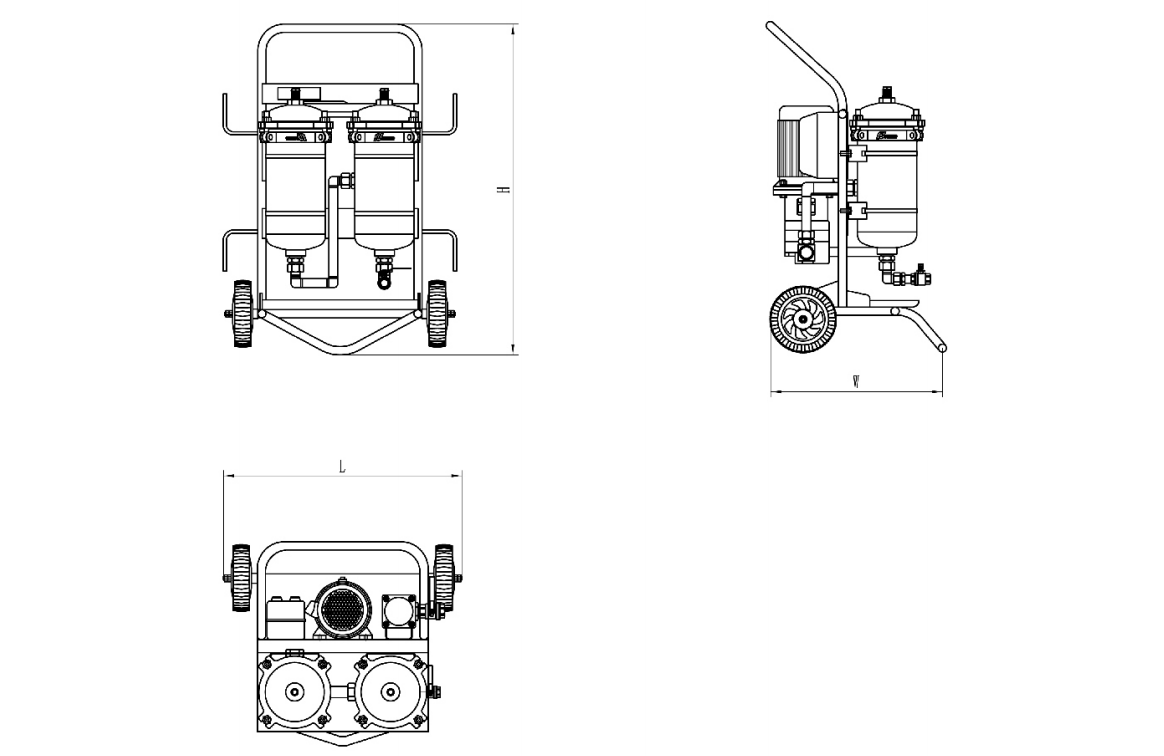

Dimension

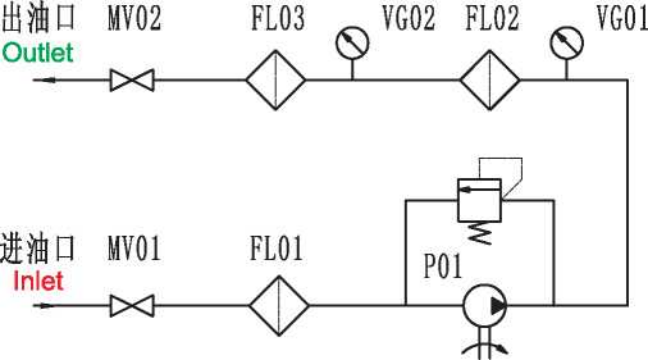

Hydraulic schematic drawing

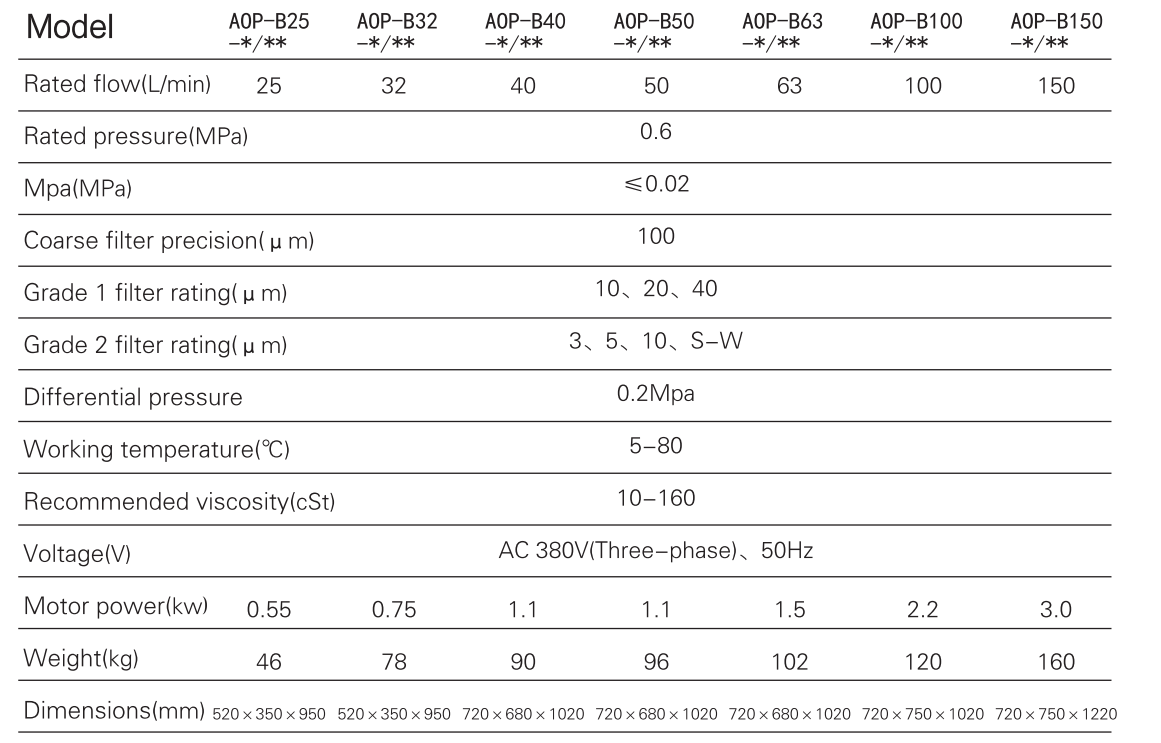

Technical parameter
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self-priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can effectively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main filter. There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the different needs of users to achieve the required results.
The primary filter can filter out larger particles and impurities, and the secondary filter can filter out fine particles or water.
The oil filter housing adopts a quick-opening structure. No special tools are needed to quickly open the upper cover and replace the filter element.
The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during work.

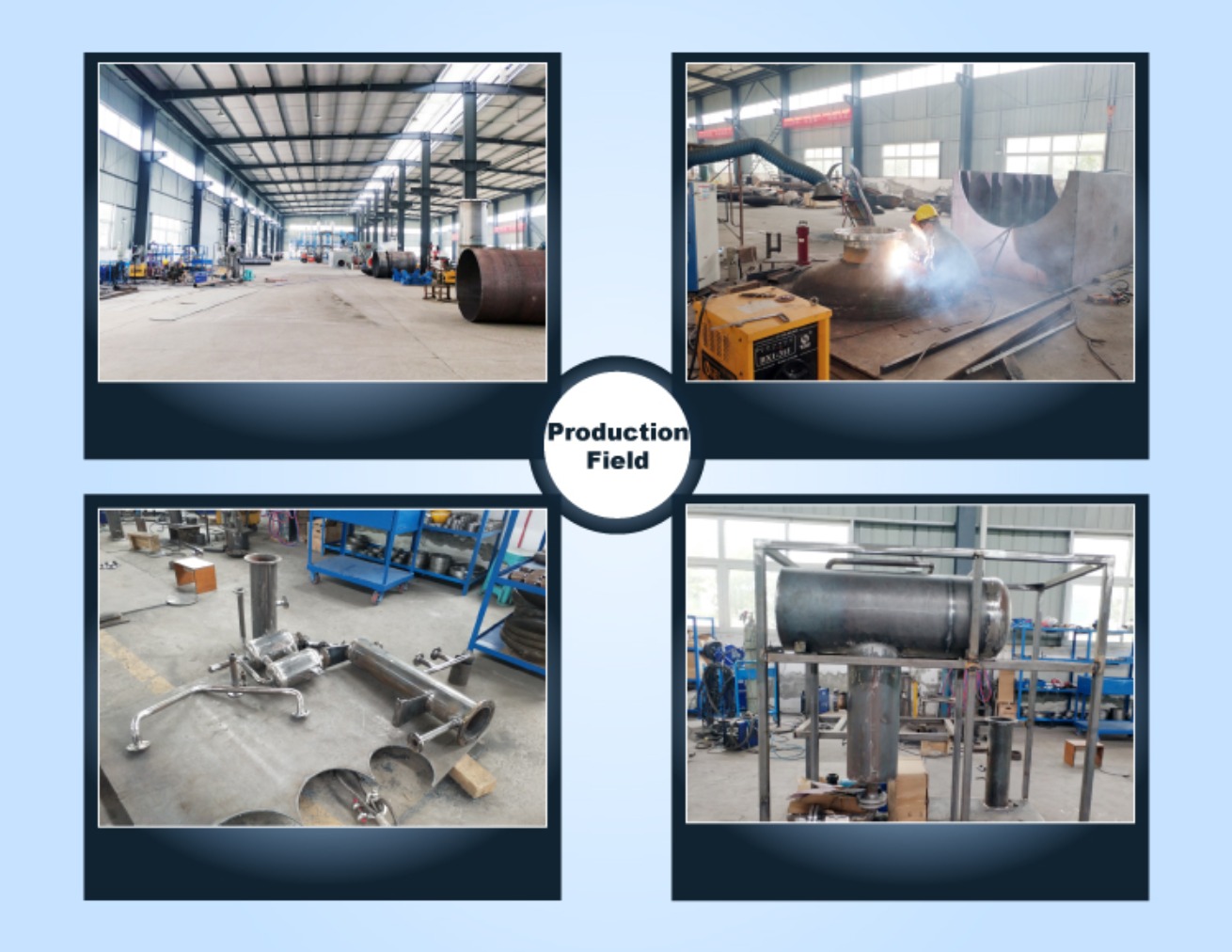

Workshop Fabrication
Oil Comparison Before and After Filtration
Technical Service
1. CQMQ promised to respond to customer questions within 24 hours.
2. CQMQ provide free on-site installation and machine commissioning.
3. CQMQ provide free technical staff training.
4. CQMQ provide free spare parts replacement and repair during the warranty period.
5. CQMQ provide free lifelong online technical and machine operation training service.
