This oil purifier is used for high viscous lubricant filtration such as unqualified refrigerating machine oil, gear oil, hydraulic oil, anti wear oil, compressor oil etc.

VACUUM LUBRICATING OIL PURIFIER

Oil Purifier Brief Introduction:

This oil purifier is used for high viscous lubricant filtration such as unqualified refrigerating machine oil, gear oil, hydraulic oil, anti wear oil, compressor oil etc. The raw material of the machine is well selected, the manufacuring process is under full inspection on every step and the relavant tests are carried out as well after welding. the quality can be guaranted accordingly.

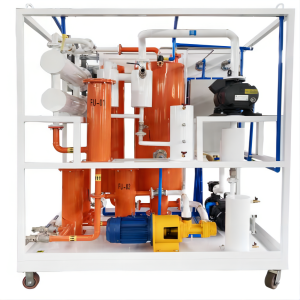

鍥剧墖7(1).png 鏂囦腑锟?1).png

Application Field of the Purifier

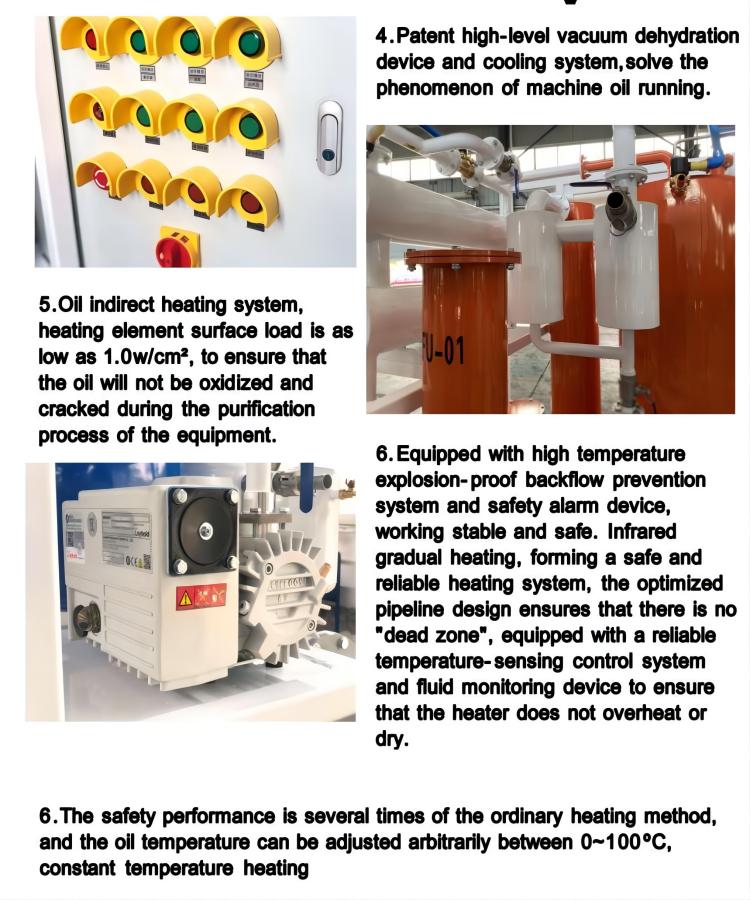

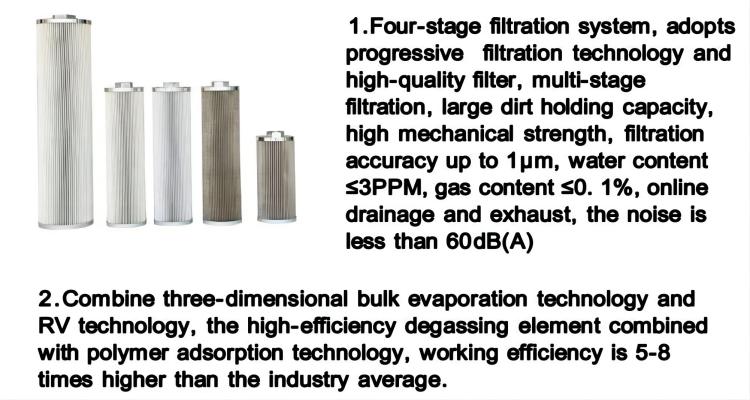

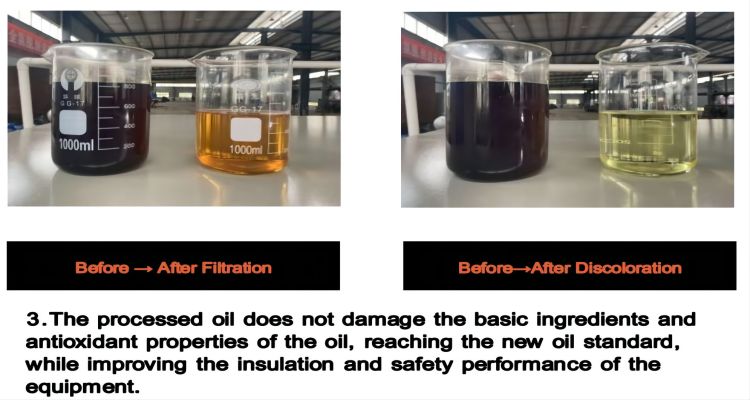

Advantage of the Purifier

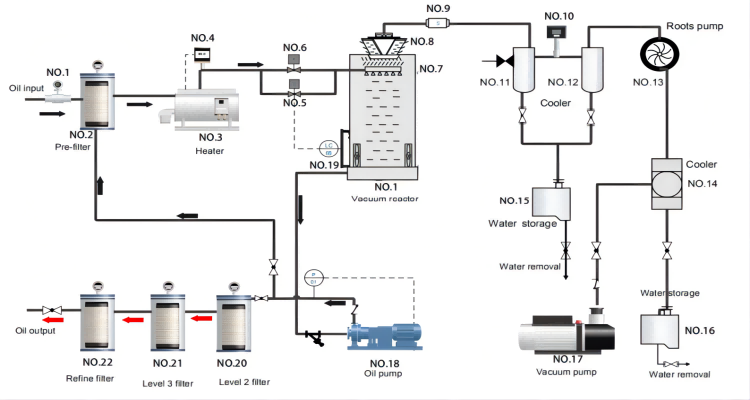

Flow Chart

Primary filter removes large particles of impurities,inlet oil pump oil into the heater.The heater improve the oil temperature,then the heated oil enters the vacuum separator through the solenoid valve. The three dimensional vacuum evaporation technology is used to achieve the separation of oil and gas. With the assistance of the oil pump and spray head, the oil reaches the secondary filter system quickly, remove medium and fine impurities. Three stage filter remove out fine impurities, the fine system remove out particulate impurities.The oil reaches a state of no impurities. Gas reduces temperature through primary cooling system,most of the gas condenses into liquid and enters the water reservoir. The remaining small part of the gas enters the secondary cooling system, with the assistance of the vacuum system complete the water and air removal quickly, achieve online drainage and exhaust.

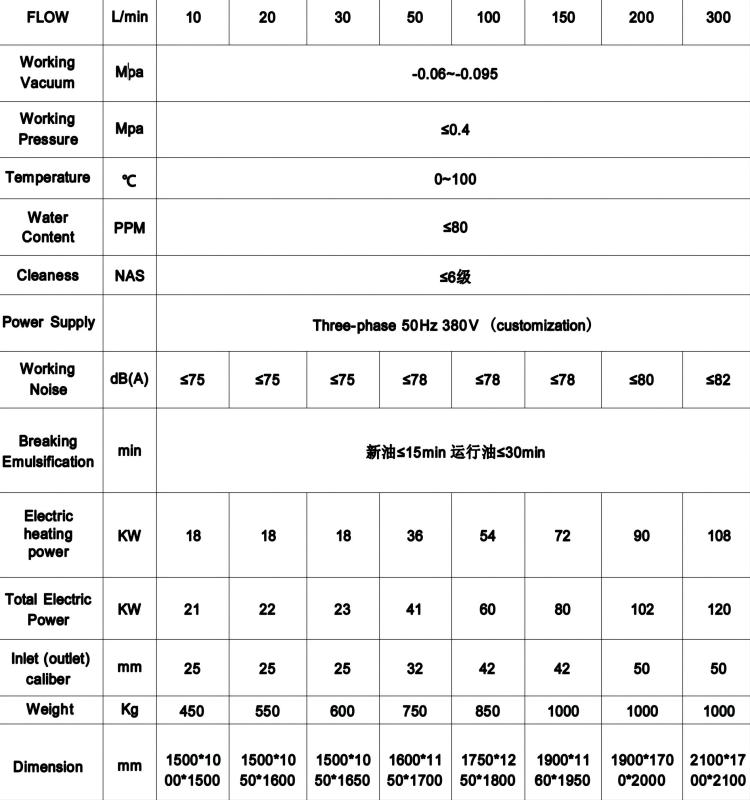

Technical Parameters

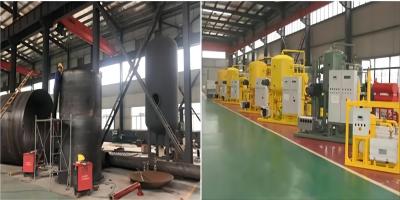

Manufacturing Phase

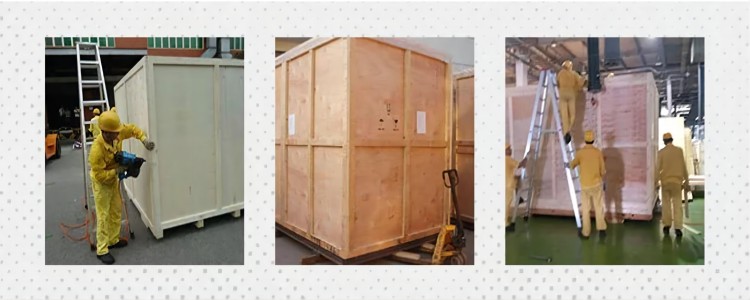

Packaging Phase


After Sales

If the machine is shut down for more than 30 days, we should place the machine in a dry environment,close the electric control cabinet door and all valves and painted with anti-rust grease,cover the machine.

Pay attention to changing or replenishing the vacuum pump oil on time. The vacuum pump uses special vacuum pump oil or N46 lubricant.

After every 3000 hours running, grease should be added to extend the service life of the motor.

After running the machine for a period time , check the pump shaft seal ,the operating system, the pump and the corresponding motor are operating abnormally.

We will continue to provide two year after sales service after delivery on line or on site based on the actual condition.
