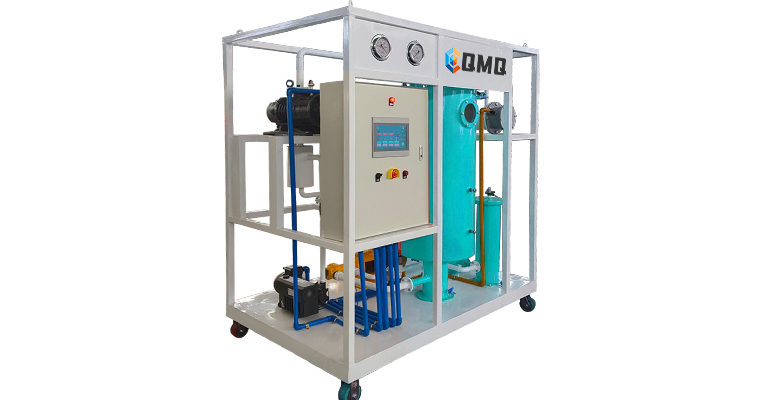

The high-efficiency vacuum oil purifier is a special equipment used to purify unqualified electrical insulating oil in the power sector and mines. It is waste transformer oil filtration machine and used lube oil purfication machine which can be used for used transformer oil filtration, used insulation oil purification, waste hydraulic oil filtration, waste gear oil filtration, waste turbine oil filtration and etc. It can quickly remove water, impurities and gases, thereby improving the pressure resistance of insulating oil.
When used in conjunction with a transformer oil regeneration machine, it can quickly remove additives, carbon, color, reduce oil consumption and improve oil insulation performance. It can process unqualified transformer oil and dry electrical equipment online, and has the function of vacuum refueling.
with PLC control system and touch screen operation, only need 1 person on site. All data shows directly by online flow meter and moisture tester. The inlet and outlet can be interchanged.
It can effectively improve the service life of oil products, multi-level precise filtration. It's with full automatic control system can 24 hours work, working 800 hours without any stop with explosion-proof.
| Working Capacity | 10-300L/Min Day |
|---|---|
| Raw Oil | Used Lubricant Oil,Turbine Oil,Gear Oil,Hydraulic Oil,Transformer Oil,Insulating Oil and etc. |
| Vacuum Degree | (-0.06-0.098 МPa) |
| Breakdown Voltage | ≥65KV |
| Water Content | ≤4ppm |
| Gas Content | ≤0.1% |
| Particles Size | ≤5um |
| Noise | ≤ 60 dB |
| Temperature Range | （20-80) |

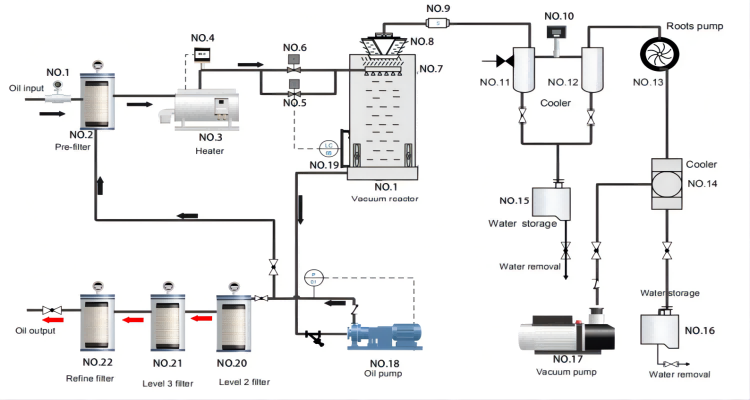

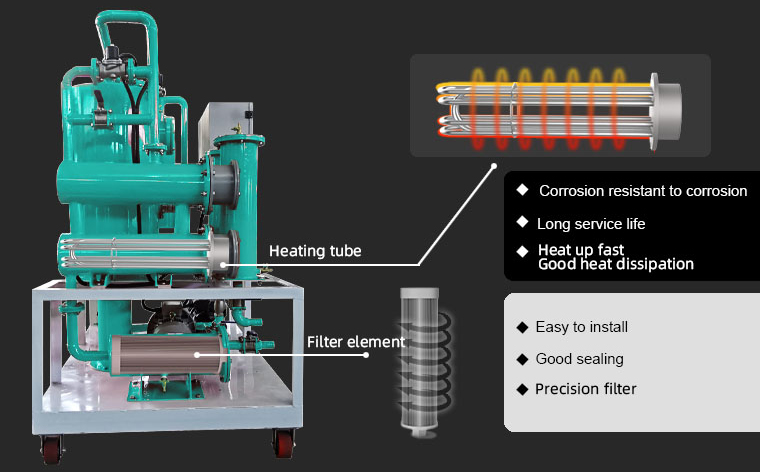

1. Primary filter removes large particles of impurities,inlet oil pump the oil into the heater.
2. Then the heated oil enters the vacuum reactor through the solenoid valve. The three-dimensional vacuum evaporation technology is used to achieve the separation of oil and gas.
3. With the assistance of the oil pump and spray head, the oil reaches the secondary and last filter system quickly,the oil reaches a state of no impurities.
4. Gas reduces temperature through primary cooling system,most of the gas condenses into liquid and enters the water tank.
5. The remaining small part of the gas enters the secondary cooling system, with the assistance of the vacuum system complete the water and air removal quickly,achieve online drainage and exhaust.

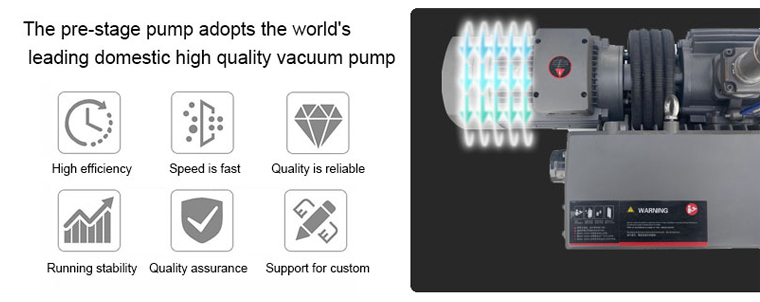

The two-stage high vacuum pump,its speed can quickly and efficiently remove the water vapor in the oil, so that the drying degree and breakdown voltage of the oil can be greatly improved, and the filtering effect can be greatly improved, so as to shorten the oil treatment period and improve the performance of the oil.
1. Adopt Duplex stereo-evaporation technology and G technology
2. Adopt distinctive removing impurities technology that takes double FH trapezoidal network and absorbs by high polymer materials instead of the traditional simple network technology
3. Double-infrared fluid level auto-control systems replace manual or floating ball valve control
4. Adopt German 3UG3 phase relay.

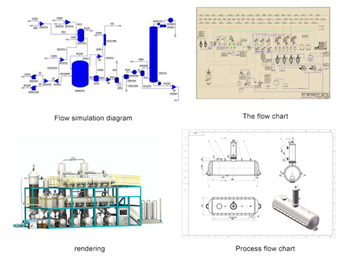

1. CQMQ technical team provide machine simulation operation data, capital analysis report, PFD, P&ID and 3D factory design drawings.
2. Provide operating data of the entire project, not just a machine. Our engineers will design and calculate the whole process according to customer requirements.
3. In this process, provide with the heat balance mass in the chemical process and balance the heat transfer area distillation column diameter height feeding position of various heat exchangers.
4. This process has high demands on the technical team, for customers, it's cost-effective, thus reducing capital and operating costs.
5. CQMQ promised to respond to customer questions within 24 hours,provide onsite installation
and machine commissioning,technical staff training,freespare parts replacement and repair during
the warranty period,free lifelong online technical and machine operation training service.

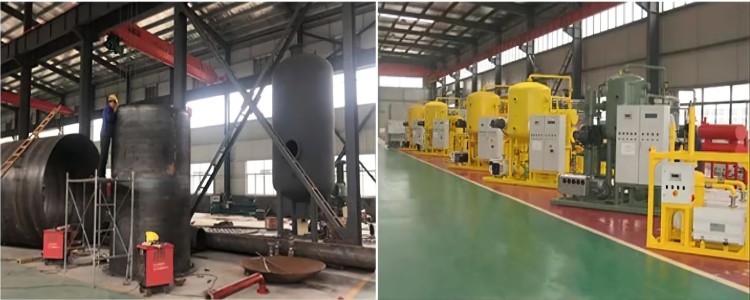

CQMQ focus on the quality from the phase of procurement of raw material, and continue to pay attention to manufacuring, test and final insepetion.

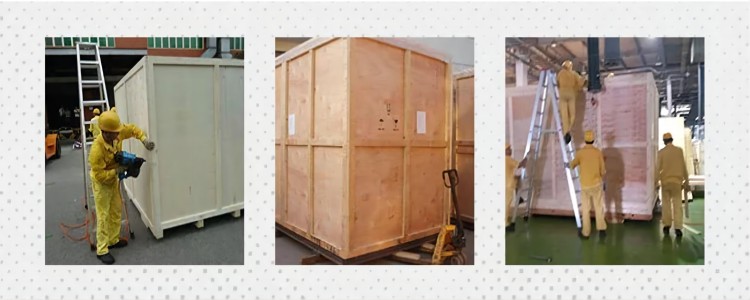

CQMQ normally use the strong wood case for packaging to make sure the machine can be fully protected during the long time shipment. We can also make customized packaging required by the client.
If the machine is shut down for more than 30 days, we should place the machine in a dry environment,close the electric control cabinet door and all valves and painted with anti-rust grease,cover the machine.
Pay attention to changing or replenishing the vacuum pump oil on time. The vacuum pump uses special vacuum pump oil or N46 lubricant.
After every 3000 hours running, grease should be added to extend the service life of the motor.
After running the machine for a period time , check the pump shaft seal ,the operating system, the pump and the corresponding motor are operating abnormally.
We will continue to provide two year after sales service after delivery on line or on site based on the actual condition.
