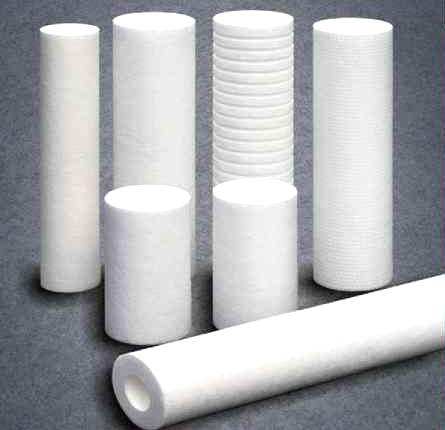

Melt blown filter
CQMQ melt blown filter is constructed by melt super fine polypropylene (PP) circled around the core without any chemical adhesive. The PP fiber randomly forms three dimensional micro-porous structure, which can provides surface, depth, and coarse filtration all by itself Large dirt-holding capacity, high filtration accuracy, and small differential pressure are available by its fiber densification & thinness. Besides, Gradually densified structure and lessened pore size help to guarantee an effective filtration fbr particle removal like suspended matter, particulate, rust etc, and make it a longer service time.
CQMQ melt blown is your reliable choice with superb filtration efficiency and highly prolonged service time!
Features:
Increasingly densified structure for optimized dirt-holding capacity
Strengthened fiber structure on surface to avoid its falling off
Super fine PP fiber to ensure a super high filtration accuracy
High resistance fbr corrosion due to 100% pure PP used
Groove or grain surface to highly enlarge filtration area
Technical date:
Dimension: OD- 63mm, 115mm
ID- 28mm, 30mm
Length-10”, 20”，30”, 40”
Material: Polypropylene (PP)
Cap End: Polypropylene (PP)
Core: Polypropylene (PP)
Gasket/Seal: Silicon rubber,epdm,nbr,Fluororubber
Performance: Filtration accuracy: lum, 5um, lOum, 20um, 30um, 50um, 75um, lOOum Max operation temperature: 65°C
Max pressure difference: 2.0Bar@ 21°C
Application:
Filtration fbr Drinking water & R.O reverse osmosis
Filtration for Acid and alkali fluid in industry chemical processing
Filtration for Industrial water & electroplating solution
Filtration for Displaying solution and ink Prefiltration fbr Sterile water, ultra pure water Filtration fbr Chemical raw material, organic solvents

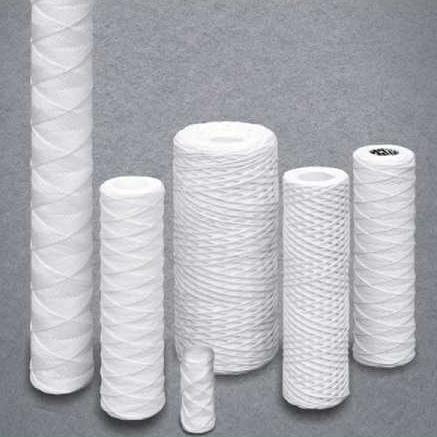

String wound filter element
CQMQ string wound filter element is made of textile fiber yam tightly circled around a porous core according to a specific process, which form a honeycomb structure with sparse outside and dense inside and has very good filtration features, so can remove suspended matter, rust, particles effectively from fluids.
PP string wound filter element can be applied to many chemical fluids like acid, alkali; absorbent cotton filter element with a stainless steel core inside can be applied to organic solvents, water, oil, alkali fluids, beverage, medicine etc.
Features:
Suitable for intensely high pressure
Superior chemical compatibility
Various material available to adapt varied fluids filtration
Great depth filtration efficiency due to the sparse outside and dense inside structure Superb capture ability for suspended matter & particles form fluids, high dirt holding capacity & lower differential pressure
Technical date:
Dimension: OD-63mm, 115mm
ID-28mm, 30mm
Length-10”，20”，30”，40”
Material: polypropylene (PP), absorbent cotton, fiberglass
Supporting core: polypropylene (PP), stainless steel Performance: Filtration accuracy: lum, 5um, lOum, 20um, 30um, 50um, 75um, lOOum
Application:
Prefiltration for Drinking water
Filtration for Acid & alkali fluid in Chemical processing
Filtration fbr Chemical raw material and organic solvents
Prefiltration fbr R.O reverse osmosis
Filtration for Syrup, chocolate and other slurry
Filtration for Display solution and ink
Prefiltration fbr Sterile water, ultra pure water
Filtration fbr Industrial water, electroplating solution

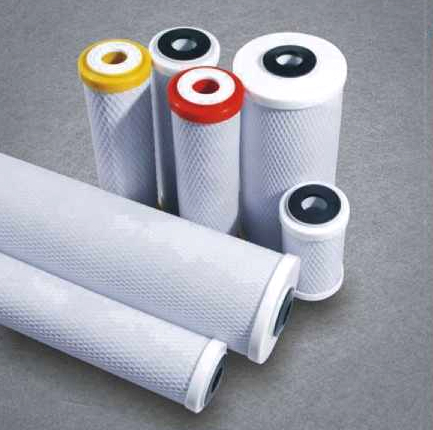

Activated carbon filter
CQMQ activated carbon filter is a recently developed element for depth filtration, having activated carbon particles mixed with adhesive and sintered together under fairly high temperature, and then shaped by squeezing continuously. Aida activated carbon filter elements have an excellent capacity to adsorb contamination like particulate, rust, residual chlorine, peculiar smell, colour, organic compound and etc. from water with typical character as a tubular element.
A polypropylene (PP) core inside enhances its pressure resistance, two layers of super fine PP fiber felt circling around the core so it easily blocks particles larger than lOum. Super fine PP fiber felt circling the carbon so it can filter particles bigger than 10-20 um, and thus this CQMQ carbon filter element realize both functions of filtration and purification. The white sleeve on the far outside helps to beauty its appearance and keep it clean. Furthermore, soft NBR rubber end caps on both ends greatly contribute to CQMQ carbon filter element5 extraordinary sealing ability.
Features:
Multiple functions including adsorption, filtration, capturing, and catalysis ,High resistance for acid, alkali, and various organic solvents,Greatly enhanced filtration accuracy with large dirt holding capacity,Low differential pressure & high flow rate ,Avirulent and insipidity, no secondary pollution,Fixed & rugged structure against intense
Technical date:
Technical data:
Working pressure drop: O.l-O2kgf7cm
Max pressure borne: 7kgf7cm
Max differential pressure: 4kgfi/cm
Max working temperature: 60°C
Max Flow rate:8L/min@10,, with 0.15kg「cm differential pressure
Surface area: 800-1000m2/g
Outside diameter (OD): 65mm, 115mm
Inside diameter (ID): 30mm
Length: 10”, 20”, 30”, 40”
Iodine absorption value: 900mg/g
Benzene absorption value: 20-25%
Methyl blue absorption value: I3-l6ml/g COD removal rate: 58.25%
Residual chlorine removal rate: A 96.83%
Application:
Purified water, semiconductor, electroplating lines, printed circuit board, compressed air, and gas filtration Chemical industry & petrochemical industry including solvents, coating, magnetic plasma, deteigait, and liquid wax etc.
Pharmaceutical manufecturing industry like hospital waler, pharmaceutical injection, Chinese medicine liquid
Food industry such as food & beverage, drinking water, wine & beer etc.

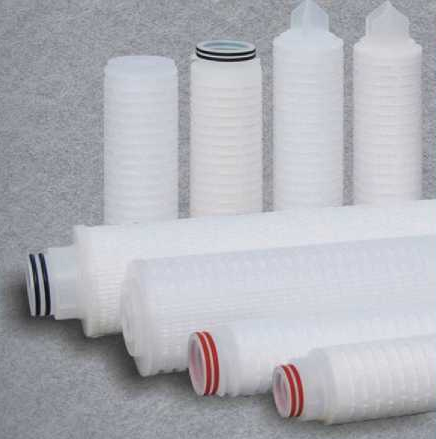

Microporous folded membrane filter element
CQMQ Microporous folded membrane filter element is made up of superior fine fiber and non woven fabric pleated together. This particular CQMQ has a shell, core, and end caps that are all hot melt welded without any adhesive, so is no leaking and no secondary pollution. There are many Aida Microporous folded membrane filter element types including PP, PES, PTFE, N6, and PVDF according to the filtration medium and service conditions
Technical data
Filtration accuracy: 0.1 um, 0.22um, 0.45um, lum, 5um, lOum, 20um, 30um, 60um Sealing material: silicon rubber, NBR rubber, EPDM rubber, fluororubber
Sealing method: hot melt weld
Filtration area: 0.6m2/ 10"
Diameter: ID-28mm, OD-69mm
Length: 10”, 20”, 30”, 40”
Max working temperature: 80C@ 0.28Mpa
Max positive differential pressure: 0.42Mpa
Max negative differential pressure: 0.28Mpa
Sterilization conditions: 121°C 30min
Connector: flat, 222#, 226#, thread connection
Features
PWater based membrane with unifbmied pores & high porosity
Superior flow rate and particle rejection Dust-free factory manufacturing process 100% professional test before being delivered out of the factory
Great resistance fbr high temperature, acid & alkali
Application
Electronics industry: reverse osmosis water prefiltration, deionized water prefiltration, chemical filtration, purified water filtration
Pharmaceutical: medicine, biological and plasma products filtration, compressed air and gas filtration Food and beverage industry: purified water, beverage, juice, wine and beer filtration Chemical industry: organic solvents, ink filtration Petrochemical industry: oilfield water injection filtration
Others: electroplating solution, metal cutting fluid, photoresist and magnetic medium filtration

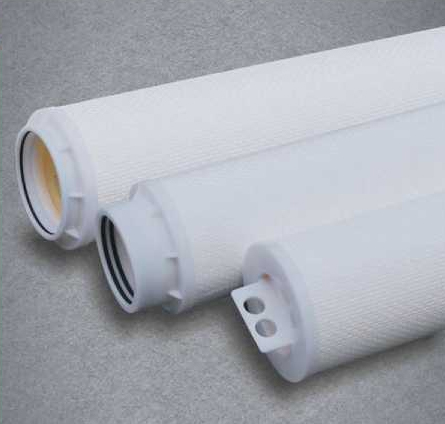

AHW-PH/high flow rate filter element
CQMQ AHW-PH high flow rate element has a special design with a longer diameter of 152mm. This Aida AHW-PH high flow rate provides an external pressure filtration with a rugged core to support from inside. In terms of the material, Aida high flow rate AHW-PH element utilizes multiple layers PP, fiberglass as well as O-rings hot welded together. You can count on CQMQ DYPK high flow rate filter element working well at 90m3/h. Also, it can be applied to your large scale reverse osmosis prefiltration system with no worries.
Technical data
Material: Polypropylene (PP), fiberglass Support/Distribution layer: polypropylene (PP) End caps: silicon rubber, NBR rubber, EPDM rubber, fluororubber
Performance: Filtration accuracy: lum, 5um, lOum, 20m, 40um, 70um, lOOum Max operation temperature: 82°C Max pressure drop: 3.4 Bar 82°C Suggested Max flow rate: 1300LPM
Features
High dirt holding capacity with longer service time Less replacement frequency to reduce labor cost sidestream risk reduced & filtration efficiency enhanced due to special sealing connector quick and easy installment to save labor cost wide applications available for lots of chemical industry
Application
large scale reverse osmosis prefiltration high purity water prefiltration in electronic industry
Amine filtration in petrochemical industry oil field re-injection water filtration electronic power, coal mining chemical industry security filtration, seawater desalination prefiltration
