REVERSE OSMOSIS MEMBRANE BW4040/BW6040/BW8040
BW series is an aromatic polyamide composite membrane element.
It has the characteristics of low operating pressure, high water production and
high desalination rate. It has a high removal rate for dissolved salts, TOC, SI02
and other substances, and is especially suitable for the preparation of
high-purity water in the electronics and power industries.
It is suitable for desalination treatment of surface water, municipal water and
other water sources, mainly used in industrial pure water, boiler feed water or
brackish water applications such as high-concentration brine

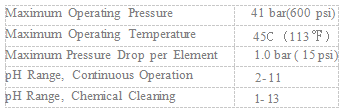

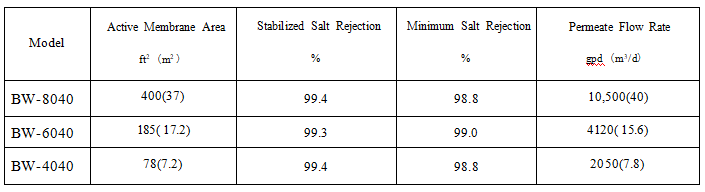

Product Specifications

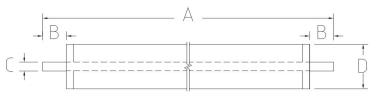

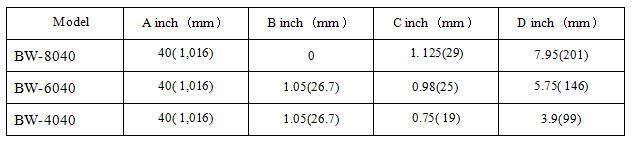

Dimensions
1. Permeate flow rates for individual elements may vary 15%.
2. Membrane active areas may vary 4%.
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours, which depending on feed water qualities and operating conditions.
REVERSE OSMOSIS MEMBRANE ULP4040/ULP6040/ULP8040
ULP series is a low-pressure aromatic polyamide composite membrane
element.
It has the characteristics of large flux and high desalination rate. The operating
pressure is about 2/3 of normal membranes.
It is suitable for desalination of RO water, groundwater, municipal water and
other water sources. It is mainly used in pure water, boiler feed water, food and
pharmaceutical manufacturing industries and other fields.

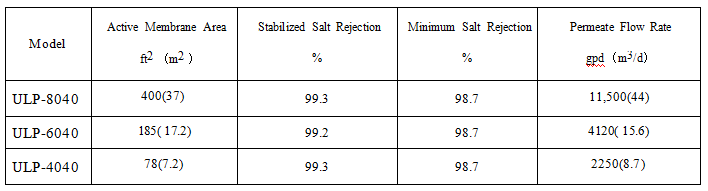

Product Specifications
Test Condition: Feed Water Pressure 1.03MPa (150 psi); Feed Water Temperature: 25 %C (77 %F); Feed Water Concentration 1,500 ppm NaCl; Feed Water pH: 8; Permeate Recovery 15%.

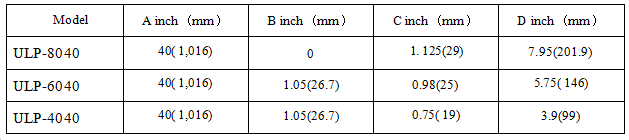

Dimensions
1. Permeate flow rates for individual elements may vary 15%.
2. Membrane active areas may vary 4%.
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours, which depending on feed water qualities and operating conditions.
REVERSE OSMOSIS MEMBRANE (ANTI-FOULING)TF22-8040FR/TF22-4040FR
TF22-8040FR/TF22-4040FR anti-fouling brackish water desalination
reverse osmosis membrane element, with the characteristics of high
water production and high desalination rate. Suitable for large-scale
industrial and municipal water treatment systems or systems with poor
influent water quality.

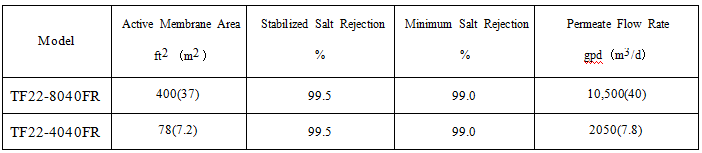

Product Specifications
Test Condition: Feed Water Pressure 1.55MPa (225 psi); Feed Water Temperature: 25 %C (77 %F); Feed Water Concentration 2,000 ppm NaCl; Feed Water pH: 8; Permeate Recovery 15%.

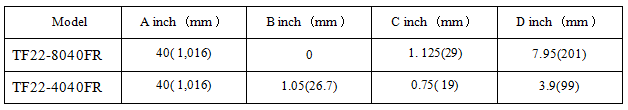

Dimensions
1. Permeate flow rates for individual elements may vary 15%.
2. Membrane active areas may vary 4%.
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours, which depending on feed water qualities and operating conditions.
REVERSE OSMOSIS MEMBRANE (ANTI-FOULING HIGH TEMPERATURE) TF22-8040FR-HT/TF22-4040FR-HT
TF22-8040FR-HT/TF22-4040FR-HT anti-fouling high temperature
reverse osmosis membrane elements, which have the characteristics of
high water production, high salt rejection and certain high temperature
resistance. Suitable for large-scale industrial and municipal water
treatment systems or systems with poor influent water quality.

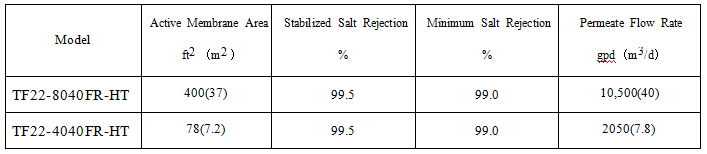

Product Specifications
Test Condition: Feed Water Pressure 1.55MPa (225 psi); Feed Water Temperature: 25 %C (77 %F); Feed Water Concentration 2,000 ppm NaCl; Feed Water pH: 8; Permeate Recovery 15%.

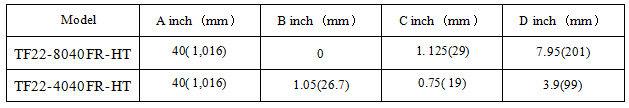

Dimensions
1. Permeate flow rates for individual elements may vary 15%.
2. Membrane active areas may vary 4%.
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours, which depending on feed water qualities and operating conditions.
REVERSE OSMOSIS MEMBRANE (SEAWATER)TF8040-SW/TF4040-SW
TF8040-SW/TF4040-SW seawater desalination reverse osmosis
membrane element, the water production is increased by 20% under the
same operating pressure. Suitable for large-scale desalination systems.
Features:
Ultra-high boron rejection.
Adopt short diaphragm structure to increase the number of film pages and improve the film efficiency.
Applicable to a wider range of PH cleaning, better cleaning effect.

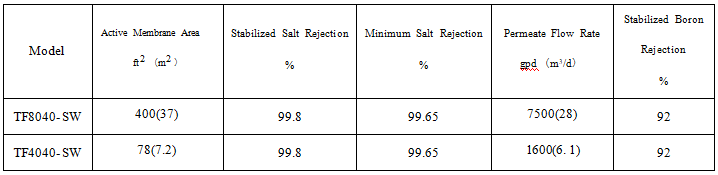

Product Specifications
Test Condition: Feed Water Pressure 5.5MPa (800 psi); Feed Water Temperature: 25 %C (77 %F); Feed Water Concentration 32,000 ppm NaCl; Feed Water pH: 8; Permeate Recovery 8%.

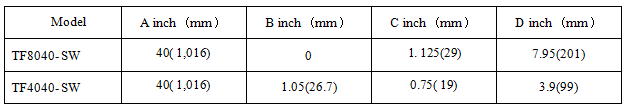

Dimensions
1. Permeate flow rates for individual elements may vary 15%.
2. Membrane active areas may vary 4%.
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours, which depending on feed water qualities and operating conditions.
REVERSE OSMOSIS MEMBRANE (NANOFILTRATION-SOFT)TF8040-SOFT/TF4040-SOFT
TF8040-NF/TF4040-NF nanofiltration membrane element. It shows
excellent removal of pesticides, viruses and bacteria in use, high removal
of natural organic matter, and moderate removal of total hardness. Through
innovative technology, the product has a stronger membrane surface and
stronger anti-oxidation performance, which can significantly improve the
operating economy of the system.

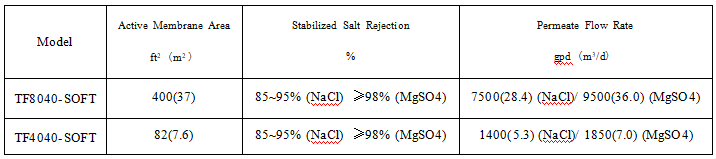

Product Specifications
Test Condition: Feed Water Pressure 0.48MPa (70psi); Feed Water Temperature: 25 °C (77 °F); Feed Water Concentration 2,000 ppm NaCl, 2,000 ppm MgSO4 ; Feed Water pH: 8; Permeate Recovery 15%.

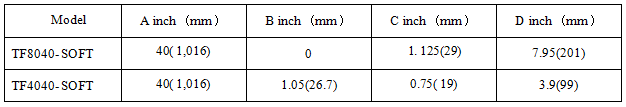

Dimensions
1. Permeate flow rates for individual elements may vary 15%.
2. Membrane active areas may vary 4%.
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours, which depending on feed water qualities and operating conditions.
DIESEL EXHAUST FLUID PURIFICATION SPECIAL MEMBRANE TF8040-UR/TF4040-UR
The TF804O-UR/TF4040-UR Diesel exhaust fluid purification special
membrane element is a newly developed industry-leading special
separation membrane element with high water yield and high
anti-pollution. It adopts a 34mil wide water inlet flow channel. On the
premise of ensuring low pressure difference The purity of the permeate
urea can meet the standard requirements.

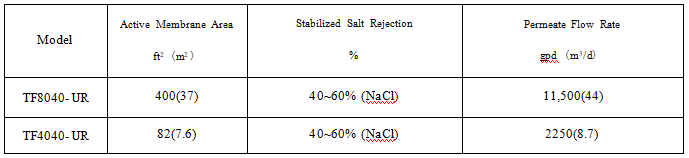

Product Specifications
Test Condition: Feed Water Pressure 0.48MPa (70psi); Feed Water Temperature: 25 °C (77 °F); Feed Water Concentration 2,000 ppm NaCl;Feed Water pH: 7; Permeate Recovery 15%.

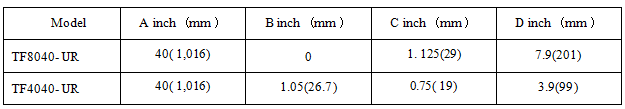

Dimensions
1. Permeate flow rates for individual elements may vary 15%.
2. Membrane active areas may vary 4%.
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours, which depending on feed water qualities and operating conditions.
